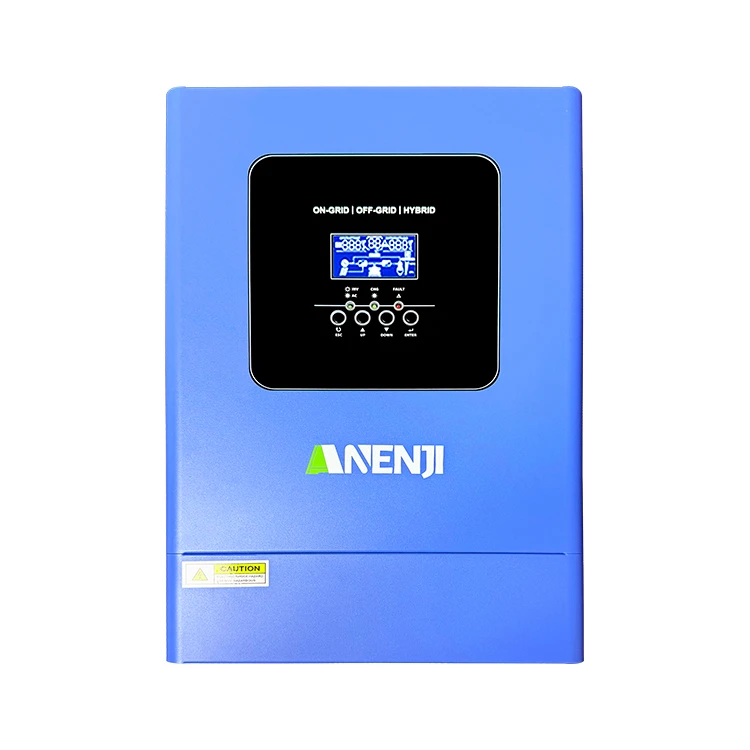

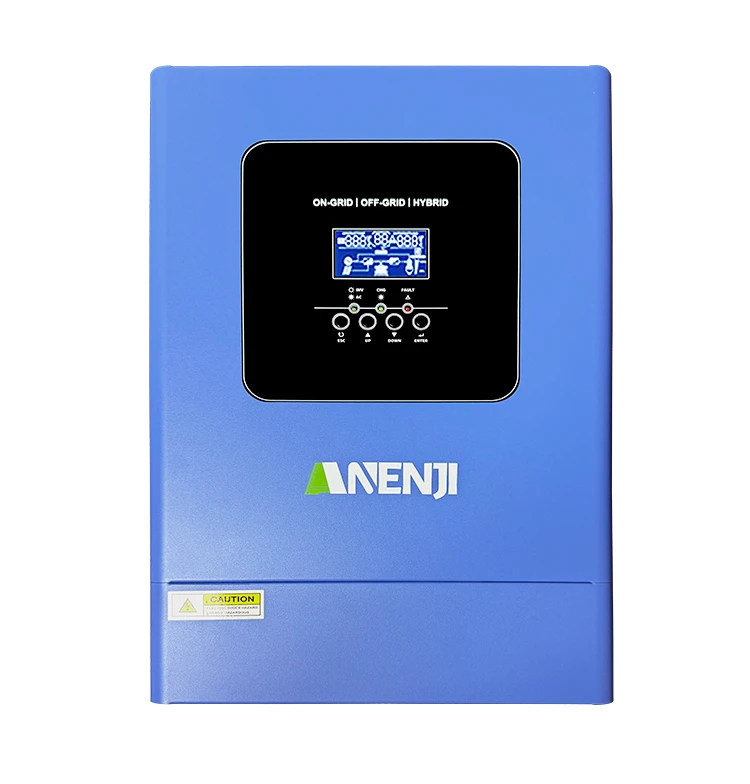

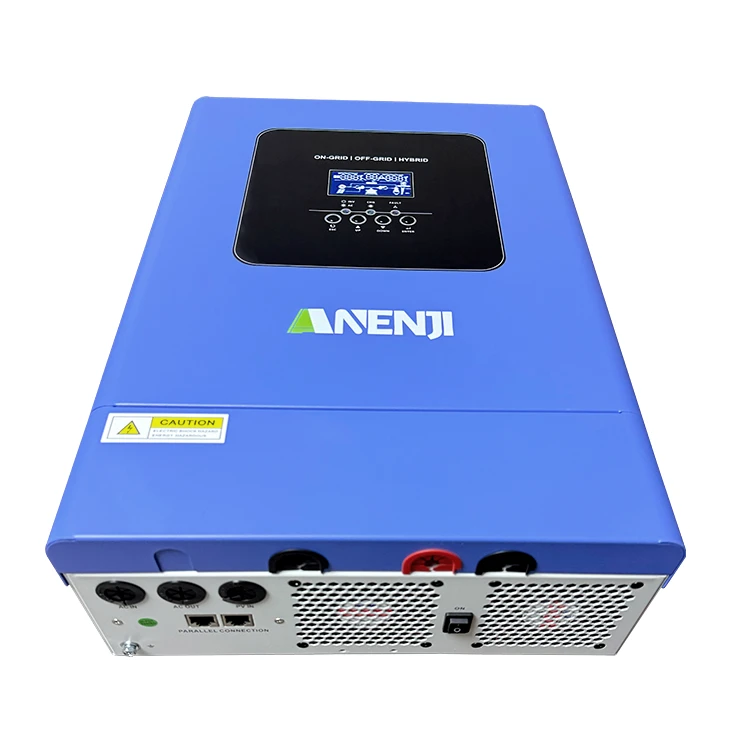

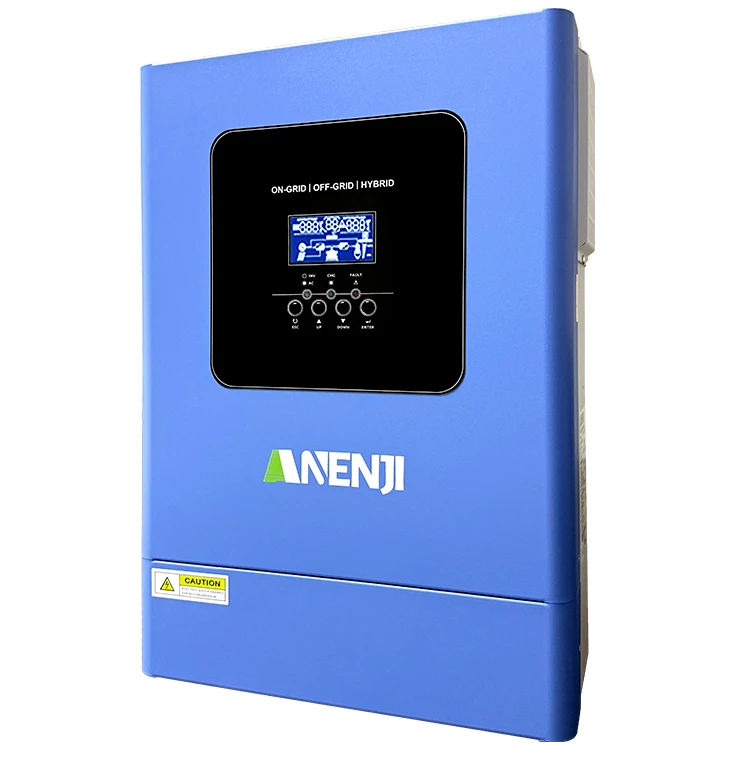

Anenji 6.2KW 48V Hybrid Inverter On grid Off grid with WIFI with CT

About this product

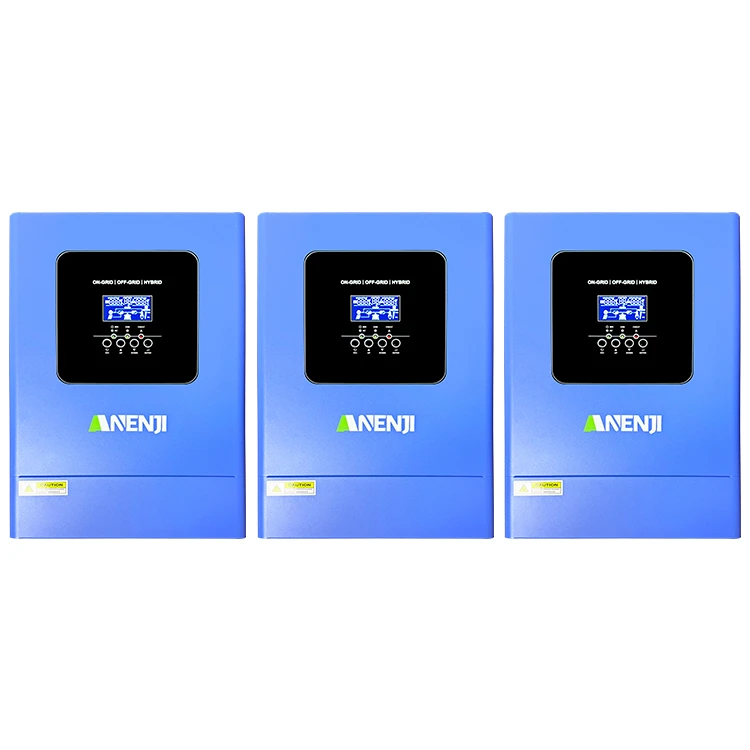

• Click to download ANENJI 6200W 48V Hybrid Parallel Inverter user manual ANENJI's new product: 6.2kW 48V hybrid solar inverter with feed-in capability, parallel function, and support for three units in parallel to form a three-phase inverter. Suitable for a wide range of usage scenarios, this inverter features both off-grid and on-grid functionality. Up to 12 units can be paralleled, or three units can be connected to create an 18.6kW three-phase inverter. With stronger performance and all-in-one functionality, it’s yet another highly cost-effective solar inverter. MODEL ANJ-6200-48PL-WIFI Phase 1-Phase In/1-Phase Out Maximum PV input power 6500W Parallel Function YES,12 Units Rated output power 6200VA/6200W Lithium battery activation Yes (By PV or Utility) Lithium batterycommunication Yes GRID-TIE OPERATION PV INPUT(DC) Nominal DC Voltage / Maximum DC Voltage 360VDC/500VDC Start-up Voltage /Initial Feeding Voltage 150VDC/120VDC MPPT Voltage Range 60VDC~500VDC Number of MPPT rackers /Maximum input Current 1/27A GRID OUTPUT(AC) Nominal Output Voltage 220/230/240VAC Output Voltage Range 170-280VAC or 90-280VAC Nominal Output Current 27A Power Factor 0.6~1(inductive or capacitive) Maximum Conversion Efficiency(DC/AC) 94% OFF-GRID OPERATION AC INPUT AC Start-up Voltage / Auto Restart Voltage 100Vac/90Vac Acceptable Input Voltage Range 170-280VAC or 90-280VAC Maximum Ac input Current 40A PV INPUT(DC) Maximum DC Voltage 500VDC MPPT Voltage Range 60VDC~500VDC Number of MPPTrackers/Maximum input Current 1127A BATTERY MODE OUTPUT (AC) Nominal Output Voltage 220/230/240VAC Output Waveform Pure Sine wave Effciency (DC to AC) 94% HYBRID OPERATION PV INPUT (DC) Nominal DC Voltage / Maximum DC Voltage 360VDC/500VDC Start-up Voltage /Initial Feeding Voltage 150VDC/120VDC MPPT Voltage Range 60VDC~500VDC Number ofMPPT Trackers/Maximum input Current 1/27A GRID OUTPUT(AC) Nominal Output Voltage 220/230/240VAC Output Voltage Range 170-280VAC or 90-280VAC NominalOutput Current 27A AC INPUT AC Start-up Voltage / Auto Restart Voltage 100Vac/90Vac Acceptable Input Voltage Range 170-280VAC or 90-280VAC Maximum AC input Current 40A BATTERY MODE OUTPUT(AC) Nominal Output Voltage 48VDC Effciency(DC to AC) 94% BATTERY & CHARGER Nominal DC Voltage 48VDC Maximum Solar Charging Current 120A Maximum AC Charging Current 80A Maximum Charging Current 120A GENERAL PHYSICAL Dimension,D xW xH(mm) 450x300x130 Net Weight (kgs) 12 Communication Port RS232+RS485+ External CT Port ENVIRONMENT Humidity 5%~95% Relative Humidity(Non-condensing) Operating Temperature -10°C~50°C SVARTAPD EEROYVANAGEME Customize your power supply via the ANENJl app. Check the status of this inverter via Wi-Fi or Bluetooth. Charging and discharging priority Select energy sources for battery charging and inverter supply
